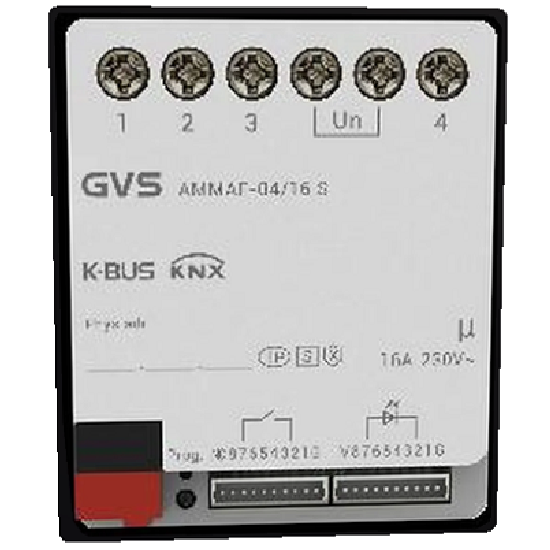

Multifunctional Actuator with Secure, 4-Fold, 16A, Flush Mounted
One channel max. 16A , total current of 4 channels less than 16A, Un rated voltage 250V AC, 50/60Hz. Main KNX functions including swicth, status
response, scene control (8 folds), time switching, logic operation, shutter, valve, heating, fan control. Dry contact input: 8-fold input, 8-fold input/LED
output,12V, cable length≤10M.
Power: KNX Bus only; Consumption: bus 37mA
Installation: Flush Mounted, fits in Chinese 86*86mm, British 70*70mm.
standard delivery
