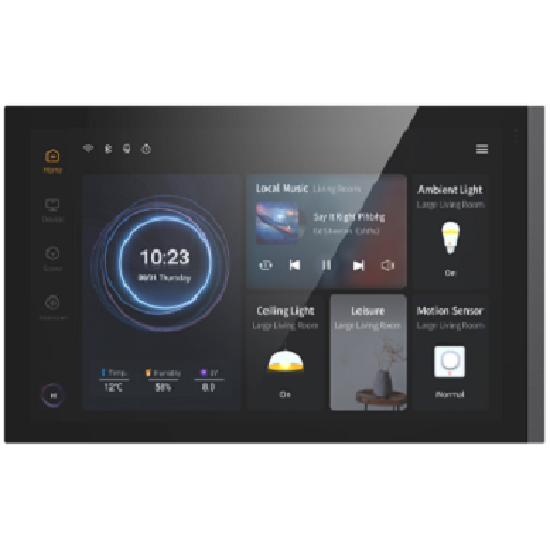

KNX Smart Touch S10 with Secure (KNX+ SIP Intercom+App Server)
10.1" IPS touch panel,resolution 1280*800, Out-of-wall thickness: 8.5mm, aluminum faceplate, built-in temperature, humidity, proximity sensor.
Full KNX functions with device-view, area-view or building plan-view, APP control,full SIP intercom functions, cloud intercom. 48V PoE, connect IP
camera. 8 fold input (Binary or NTC 10K Temp. sensor). 240 KNX channels(120 Basic+ 120 Advanced) including switch,dimming, shutter, scene
control (max.30), value sending, RGB, RGBW, RGBCW,Color Temp. control, HVAC,AC,floor heating, ventilation, audio control, energy metering, air
quality display, I/O sensor status. HVAC controller(6), HCL, Max.16 timing , 8 group event, 8 logic functions, alarm function(24). Easy UI, screen
saver, theme customization, support multiple languages.
Power: KNX Bus & 48V POE(or 24-30 VDC) Consumption: bus 4mA & Auxiliary 350mA
Installation: Wall mounted. Fits in Chinese 86*86mm, British 70*70mm, German twin (Ø 68mm), wall boxes
Color option: Black/White
standard delivery
