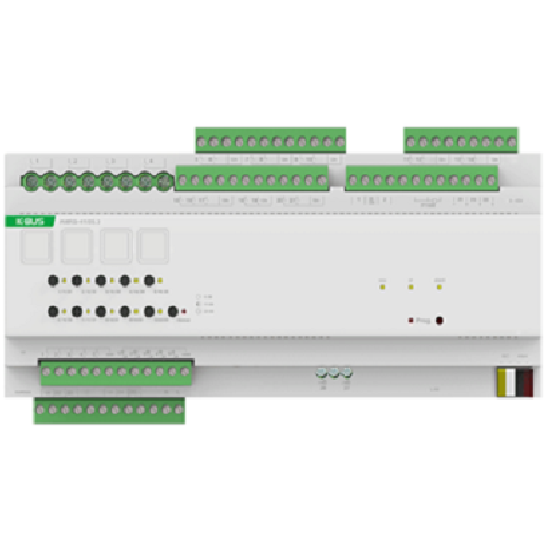

KNX Room Controller Smart, 12SU MDRC
Switch relay 4 * 16A,21 * 6A; 1 folds AC/Dry contact shutter, 2 folds TRIAC dimming, 3 folds 0-10V dimming, 1 fold fan coil actuator with 0-10V
output valve, 1 fold IP protocol, 5 folds of dry contact/binary input/LED output. 4 group event,4 logic functions, 4 time functions,Three-wires PT1000
temperature sensor interface.
Power: KNX Bus & Auxiliary; Consumption: bus 12mA & Auxiliary 200mA
Installation: DIN-rail Mounted
standard delivery
