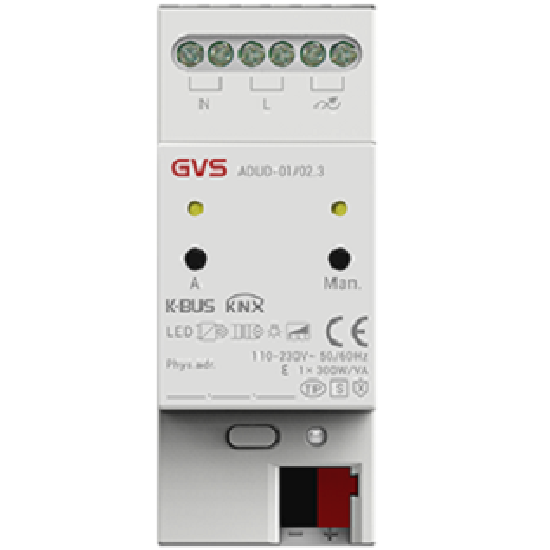

KNX Universal Dimming Actuator with Secure 1-Fold, 2SU MDRC
Max. load 300W/channel, leading / trailing edge phase dimming control, Un rated voltage 110~230V AC, 50-60Hz. KNX functions including switch,
relative & absolute dimming, status response, scene control (16 folds), staircase lighting, flashing switch, delay switch, threshold, forced,safety
function, 8 logic function. Dimming curve adjustment (6 options+1 Customization) in ETS. Manual operation and Output indication function,
Operating hours counter function.
Power: KNX Bus only; Consumption: bus 6mA
Installation: DIN-rail Mounted
standard delivery
