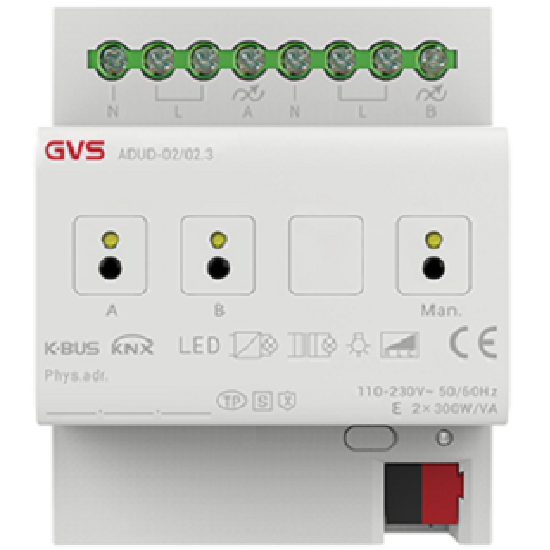

KNX Universal Dimming Actuator with Secure 2-Fold, 4SU MDRC
Max. load 300W/channel, Parallel: 2 channels 500W, leading / trailing edge phase dimming control, Un rated voltage 110~230 V AC, 50-60Hz. KNX
functions including switch, relative & absolute dimming, status response, scene control (16 folds), staircase lighting, flashing switch, delay switch,
threshold, forced,safety function, 8 logic function. Dimming curve adjustment (6 options+1 Customization) in ETS. Manual operation and Output
indication function, Operating hours counter function, Central control function.
Power: KNX Bus only; Consumption: bus 7mA
Installation: DIN-rail Mounted
standard delivery
