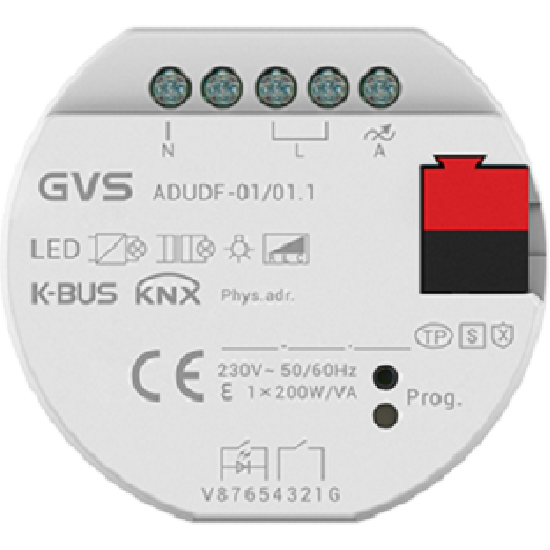

KNX Universal Dimming Actuator with Secure 1-Fold, Flush Mounted
Max. load 200W, leading / trailing edge phase dimming control, Un rated voltage 230V AC, 50/60Hz. KNX functions including switch, relative &
absolute dimming, status response, scene control (16 folds), staircase lighting, flashing switch, delay switch, threshold, forced, safety function, 8
logic function. Dimming curve adjustment (6 options+1 Customization) in ETS. Can be individually configured per 4-fold input & 4-fold input/LED
output, cable length≤10M, dry contact input, 5V/12V DC LED output.
Power: KNX Bus only; Consumption: bus 17mA
Installation: Flush Mounted,fits in Chinese 86*86mm, British 70*70mm, German Round (Ø 68mm), Swiss wall boxes
standard delivery
